In the fast-paced world of electronics, the demand for high-performance printed circuit boards (PCBs) continues to grow exponentially. From aerospace to telecommunications, industries are constantly seeking materials that can deliver consistent performance across a wide frequency range. The RT/duroid 5880 PCB is one such material, offering unparalleled electrical properties and reliability for high-frequency applications. In this blog, we’ll explore the features, benefits, and applications of this groundbreaking PCB, and why it’s becoming the go-to choice for engineers and designers worldwide.
RT/duroid 5880 Introduction
The RT/duroid 5880 is a high-frequency laminate developed by Rogers Corporation, a pioneer in advanced materials for electronics. This material is a PTFE (polytetrafluoroethylene) composite reinforced with glass microfibers, specifically designed for precision stripline and microstrip circuit applications. Its unique composition ensures exceptional dielectric constant uniformity, making it ideal for applications where electrical performance and reliability are critical.
Key Features of the RT/duroid 5880 PCB
The RT duroid 5880 PCB is packed with features that set it apart from conventional PCB materials. Here’s a closer look at what makes this PCB so special:
1. Exceptional Dielectric Constant Uniformity
With a dielectric constant of 2.2±0.02 at 10 GHz, the RT/duroid 5880 ensures consistent electrical performance across the entire board. This uniformity is critical for high-frequency applications where even minor variations can lead to signal integrity issues.
2. Low Dissipation Factor
The dissipation factor of 0.0009 at 10 GHz minimizes signal loss, making this PCB ideal for high-speed and high-frequency designs. This low loss characteristic extends its usability to millimeter-wave applications.
3. Temperature Stability
The temperature coefficient of dielectric constant (TCDk) of -125 ppm/°C ensures that the material maintains its electrical properties even under varying temperature conditions. This stability is crucial for applications in harsh environments.
4. Low Moisture Absorption
With a moisture absorption rate of just 0.02%, the RTduroid 5880 PCB 2-layer 10mil Copper filled via is highly resistant to environmental humidity, making it suitable for use in high-moisture environments.
5. Ease of Fabrication
The material is easy to cut, shear, and machine, allowing for precise fabrication of complex designs. It is also resistant to solvents and reagents used in standard PCB etching and plating processes.
6. Isotropic Properties
The isotropic nature of the RT/duroid 5880 high frequency PCB ensures uniform thermal expansion in all directions, reducing the risk of warping or delamination during assembly or operation.
Benefits of Using RT/duroid 5880 PCB
The Rogers duroid 5880 PCB offers a host of benefits that make it a preferred choice for high-frequency applications:
- Uniform Electrical Properties:
The consistent dielectric constant and low dissipation factor ensure reliable performance across a wide frequency range.
- Durability:
Resistant to solvents and reagents, this PCB can withstand the rigors of standard etching and plating processes.
- Moisture Resistance:
Its low moisture absorption makes it ideal for use in humid or high-moisture environments.
- Proven Reliability:
As a well-established material, the RT/duroid 5880 has a track record of success in demanding applications.
- Lowest Electrical Loss:
Among reinforced PTFE materials, the RT/duroid 5880 offers the lowest electrical loss, making it perfect for high-frequency designs.
PCB Construction Details

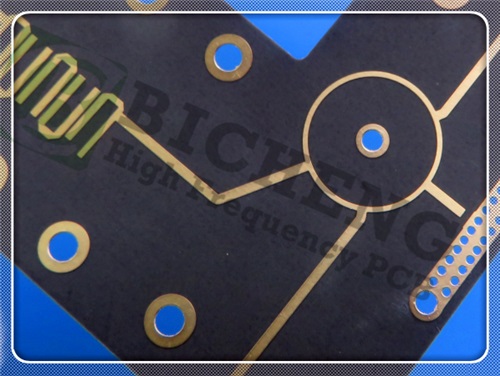

The RT duroid 5880 PCB we’re introducing today is a 2-layer rigid PCB with the following specifications:
- Board Dimensions: 50mm x 45mm (±0.15mm)
- Layer Stackup:
- Copper Layer 1: 35μm
- RT/duroid 5880 Core: 0.254 mm (10 mil)
- Copper Layer 2: 35μm
- Minimum Trace/Space: 5/4 mils
- Minimum Hole Size: 0.2mm
- Finished Board Thickness: 0.4mm
- Finished Copper Weight: 1 oz (1.4 mils) on outer layers
- Via Plating Thickness: 20μm
- Surface Finish: Immersion gold
- Top Silkscreen: White
- Top Solder Mask: Matt green
- Copper-Filled Vias: Used on designated IC pads for enhanced thermal and electrical performance
Why Choose This PCB?
1. Precision Engineering
With a minimum trace/space of 5/4 mils and a minimum hole size of 0.2mm, this PCB is designed for high-density designs that require precision and reliability.
2. Enhanced Thermal Management
The copper-filled vias on designated IC pads improve thermal conductivity, ensuring efficient heat dissipation and reducing the risk of overheating.
3. High Reliability
The PCB undergoes 100% electrical testing prior to shipment, ensuring that every board meets the highest quality standards.
4. Compliance with Industry Standards
Manufactured to IPC-Class-2 standards, this PCB is suitable for a wide range of commercial and industrial applications.
Applications
The Rogers 5880 PCB is versatile and finds use in a variety of high-frequency applications, including:
- Commercial Airline Broadband Antennas:
Its low loss and stable dielectric properties make it ideal for airborne communication systems.
- Microstrip and Stripline Circuits:
The material’s uniformity ensures consistent performance in these critical circuit designs.
- Millimeter Wave Applications:
With its low dissipation factor, the PCB is perfect for high-frequency millimeter-wave systems.
- Radar Systems:
The material’s temperature stability and low moisture absorption make it suitable for radar applications in challenging environments.
- Guidance Systems:
Its reliability and precision are essential for aerospace and defense guidance systems.
- Point-to-Point Digital Radio Antennas:
The PCB’s low electrical loss ensures clear and reliable signal transmission.
Availability and Artwork Specifications
The Rogers substrate 5880 PCB is available worldwide, making it accessible to designers and engineers across the globe. The artwork is supplied in Gerber RS-274-X format, ensuring compatibility with most PCB design software.
Conclusion
The Rogers RT duroid 5880 PCB is a testament to the advancements in high-frequency circuit design. With its exceptional electrical properties, ease of fabrication, and proven reliability, it is the material of choice for demanding applications in aerospace, telecommunications, and beyond. Whether you’re designing a commercial airline broadband antenna or a millimeter-wave radar system, the Rogers RT/duroid 5880 PCB delivers the performance and reliability you need to stay ahead in the competitive world of electronics.
If you’re looking for a PCB that combines cutting-edge technology with unmatched reliability, the 10mil Rogers 5880 substrate PCB is the solution you’ve been waiting for. Contact us today to learn more about how this remarkable PCB can elevate your next project!
